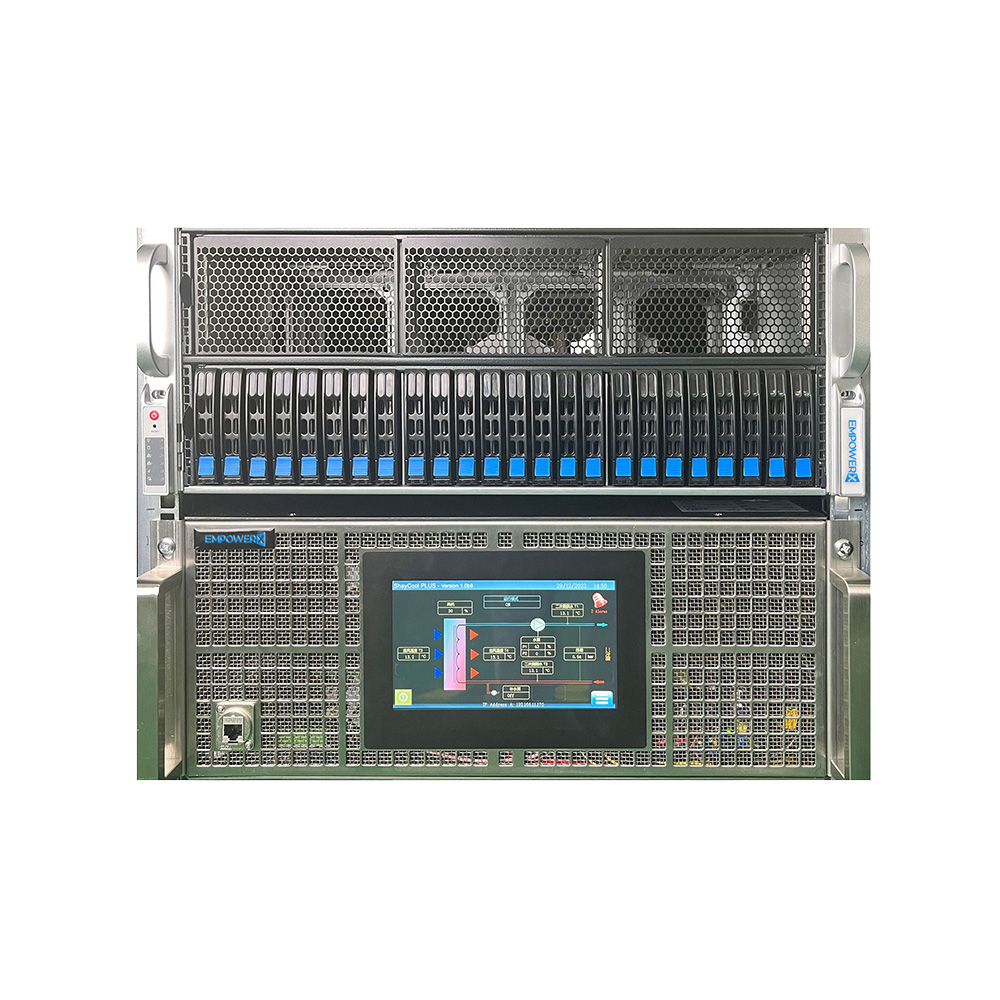

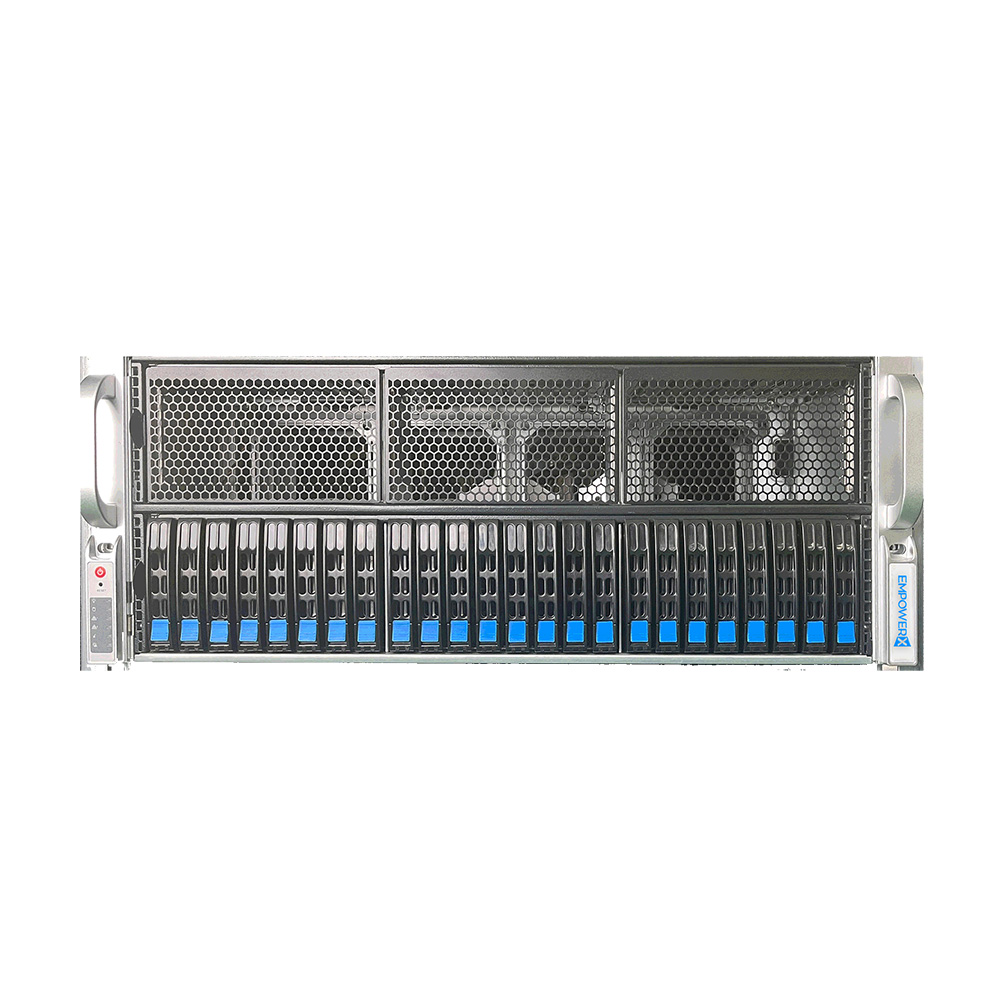

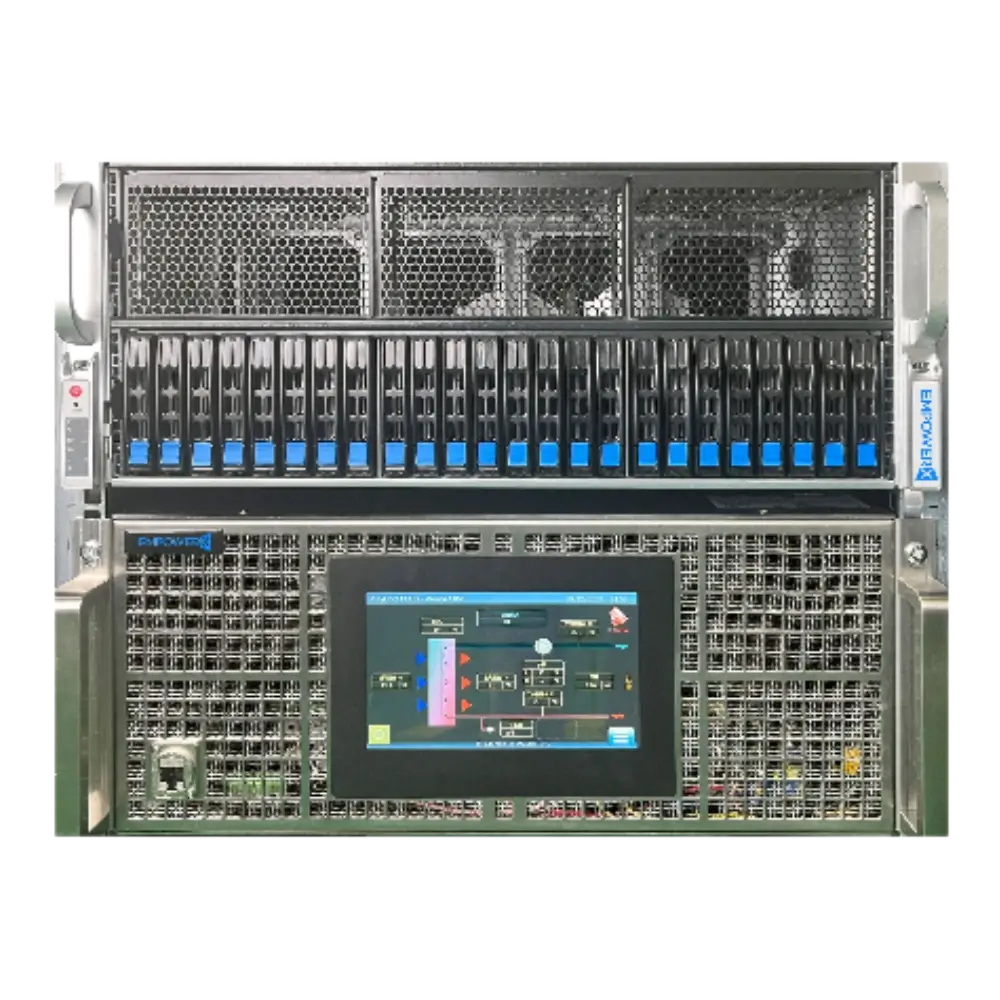

FG4824-G4SL 8-GPU Server

Processor

Supports 2*4th or 5th generation Intel® Xeon® Scalable processors, with a maximum TDP support of 350W、Up to 64C/128T；

Chipset

Intel® C741；

Memory

Supports 32 x DDR5 DIMMs, up to 5600/4400MHz；

Supported GPU

Supports up to 8 industry-leading NVIDIA RTX all-in-one liquid-cooled GPUs；

Network

1 1Gb RJ45 dedicated management network port；

2 RJ45 10GbE with Intel® X710-AT2;

Supports expansion with standard PCIe network adapters at 1GbE, 10GbE, 25GbE, 40GbE, 100GbE, and 200GbE. ；

Drive Bays Configuration

24 × 2.5-inch hot-swappable drive bays, 2 × M.2 slots ；

RAID Expansion Support

Integrated 6Gb/s onboard SATA, optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card；

PCI-Express

13 PCIe 5.0 x16 FHFL slots；

OS Compatibility

kylinos、Red Hat Enterprise Linux 、SLES、CentOS、QEMU-Xen、vSphere、QEMU-KVM、Ubuntu、VMWare ESXi、Microsoft Windows；

BMC

Integrated BMC management chip, supporting functions such as IPMI2.0, Redfish, SOL, KVM, virtual mediaetc；

I/O Ports

1x IPMI RJ45 management port；

2x RJ45 10GbE with Intel® X710-AT2

1x VGA；

2x USB3.0 prot；

1x COM prot；

FAN

Up to 8 heavy duty fans with optimal fan speed control；

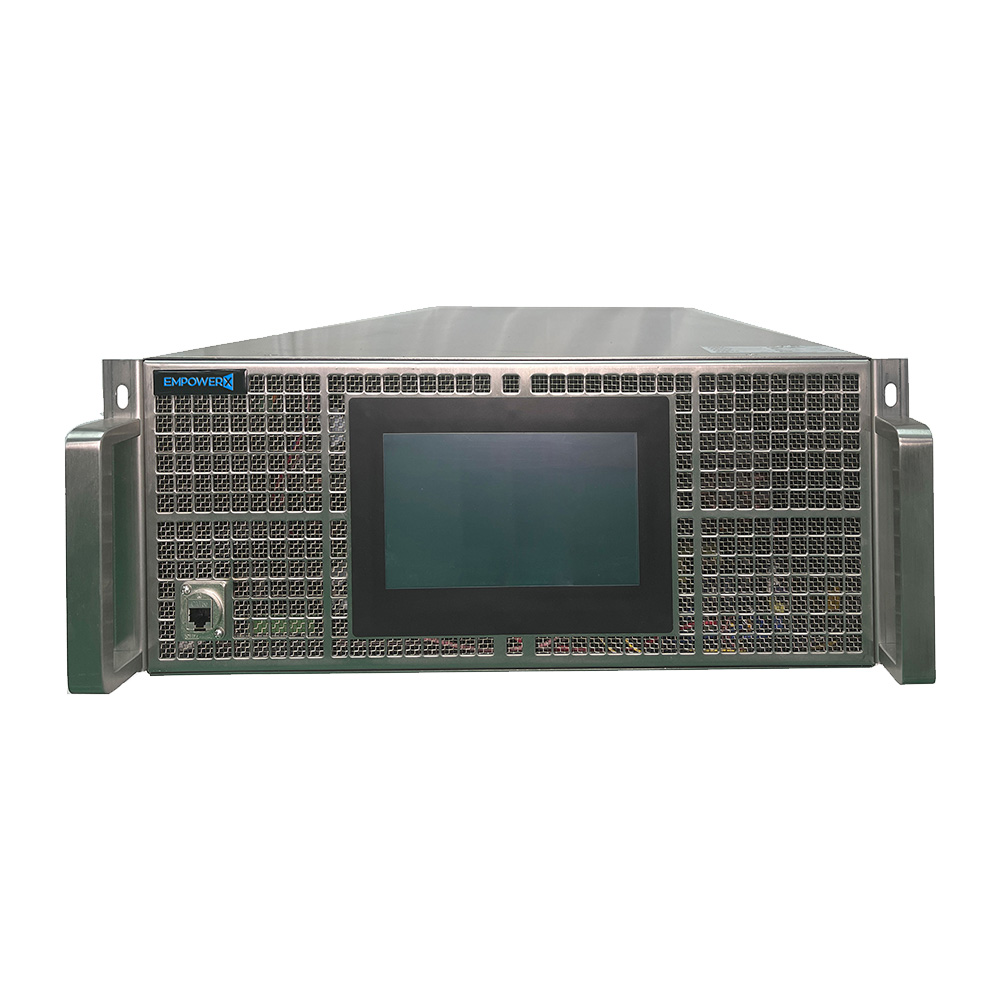

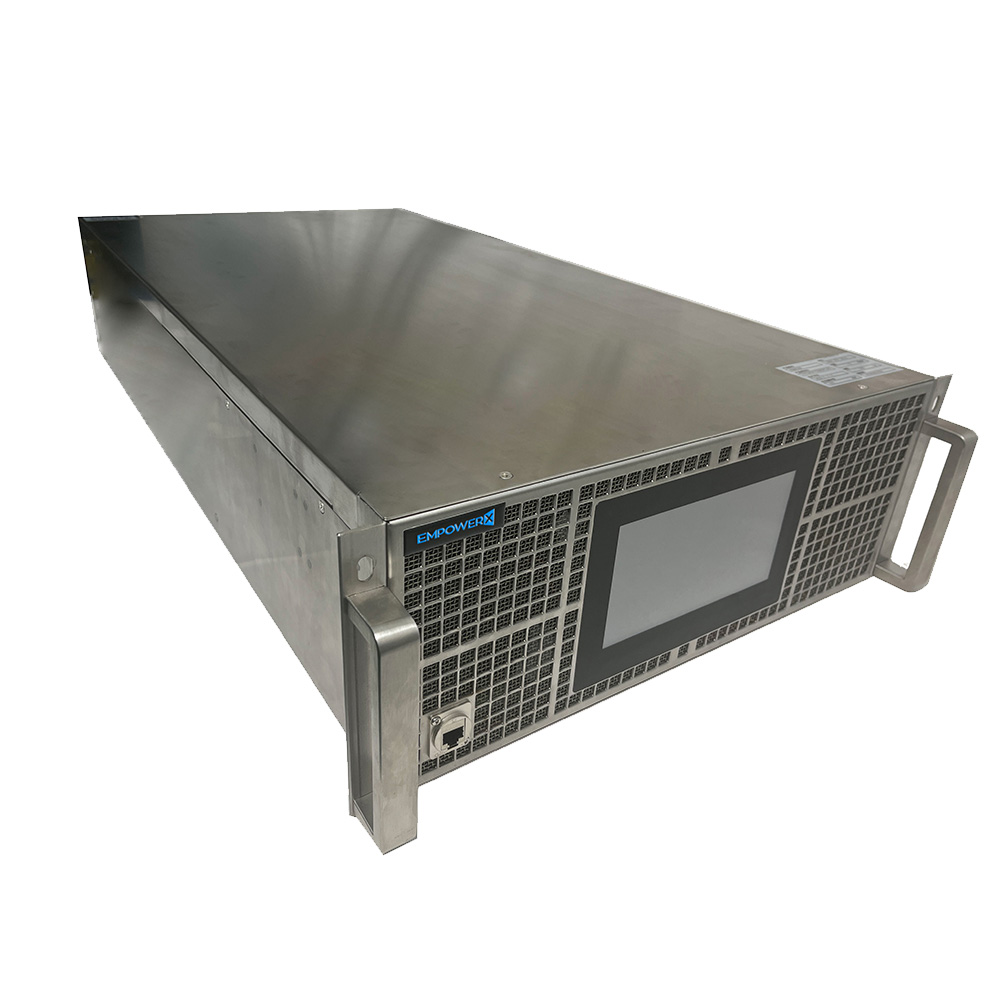

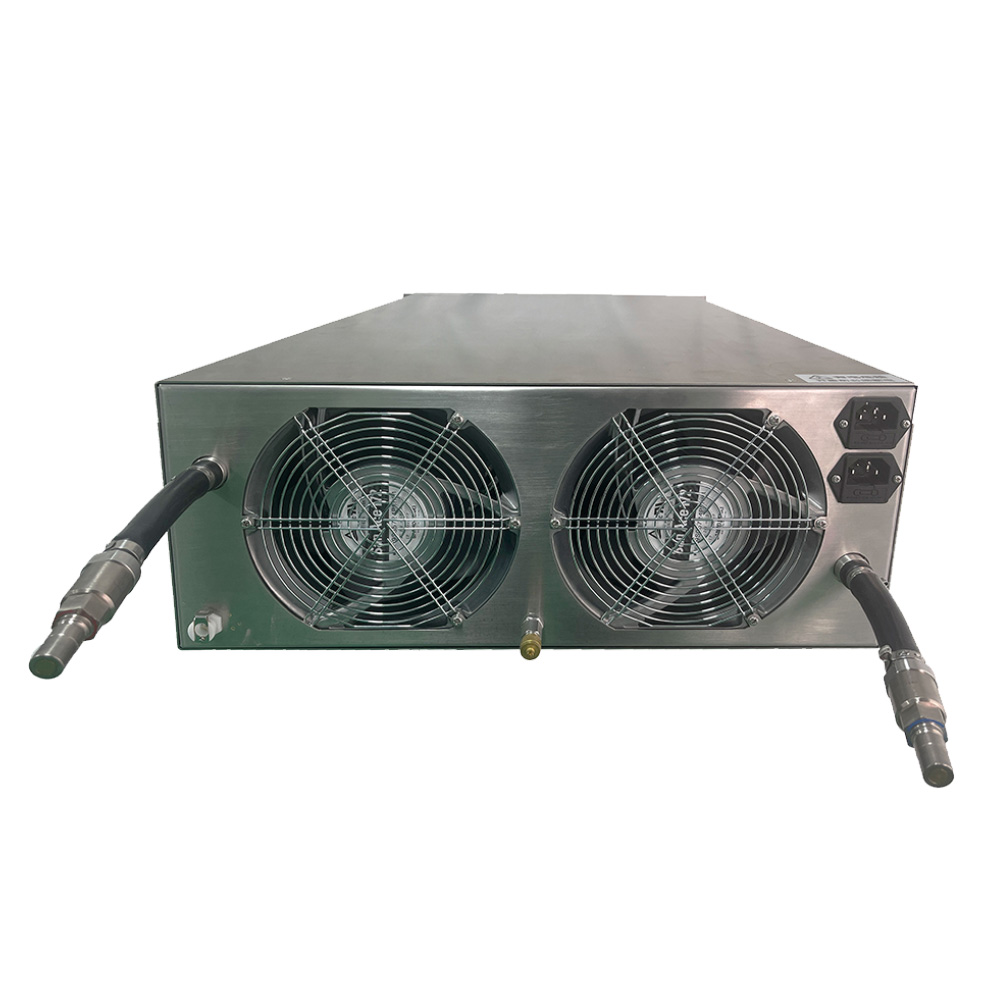

CDU

Cooling capacity ≥6 kW; coolant supply temperature ≤38°C (ambient 25°C), flow rate 8 LPM, pump head 0.5 bar with dual-pump redundancy; equipped with a dedicated Cooltera liquid-cooling controller displaying temperature, loop pressure, pump speed and other parameters; airflow 600 CMH; full-load noise ≤60 dB.

Power Supply

4x 2700W high-efficiency platinum power supply；

Chassis

4U Rackmount；

Security

Supports TPM2.0 module and chassis intrusion alarm；

Dimensions

4U Rack Server: 437 mm × 178 mm × 737 mm (W × H × D)

4U Rack CDU: 445 mm × 177 mm × 860 mm (W × H × D)；

Weight

Maximum weight 60 kg；

Operating Environment

Operating temperature: 5ºC - 35ºC (without direct sunlight);

Storage temperature: -40ºC - 70ºC；
