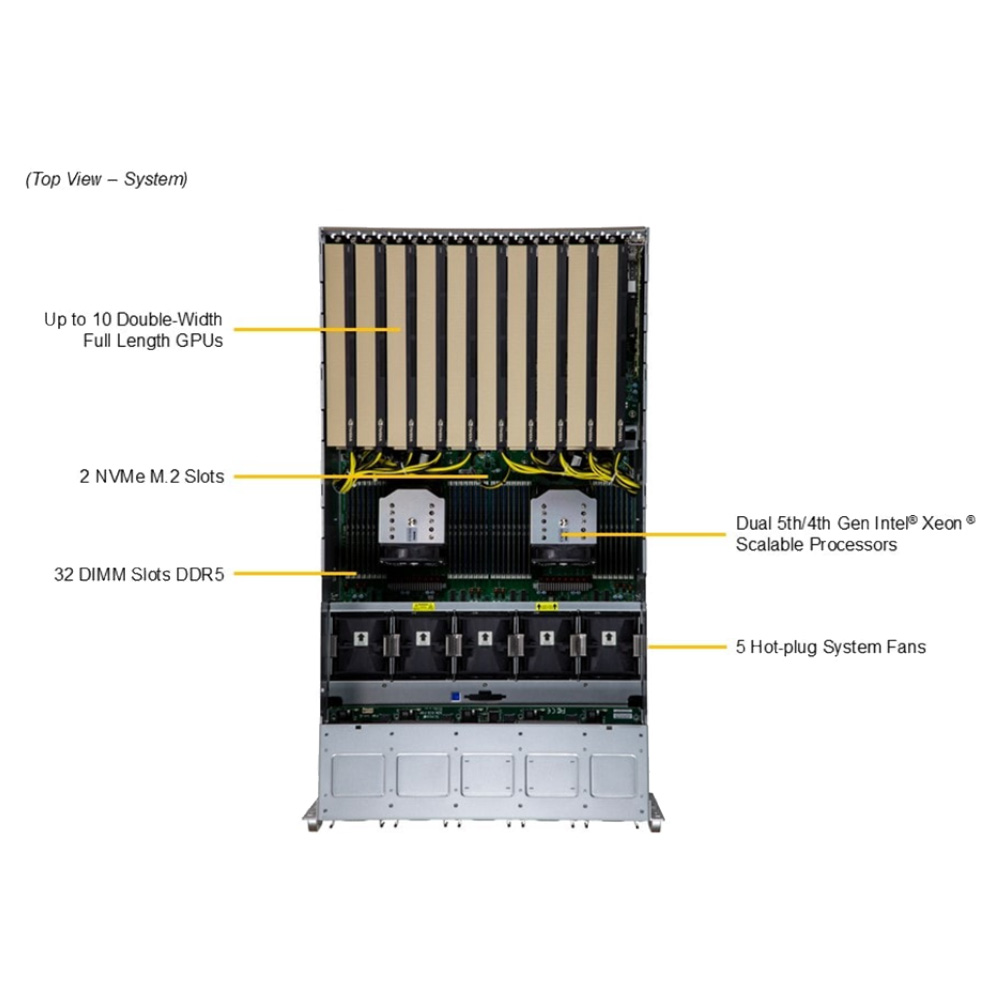

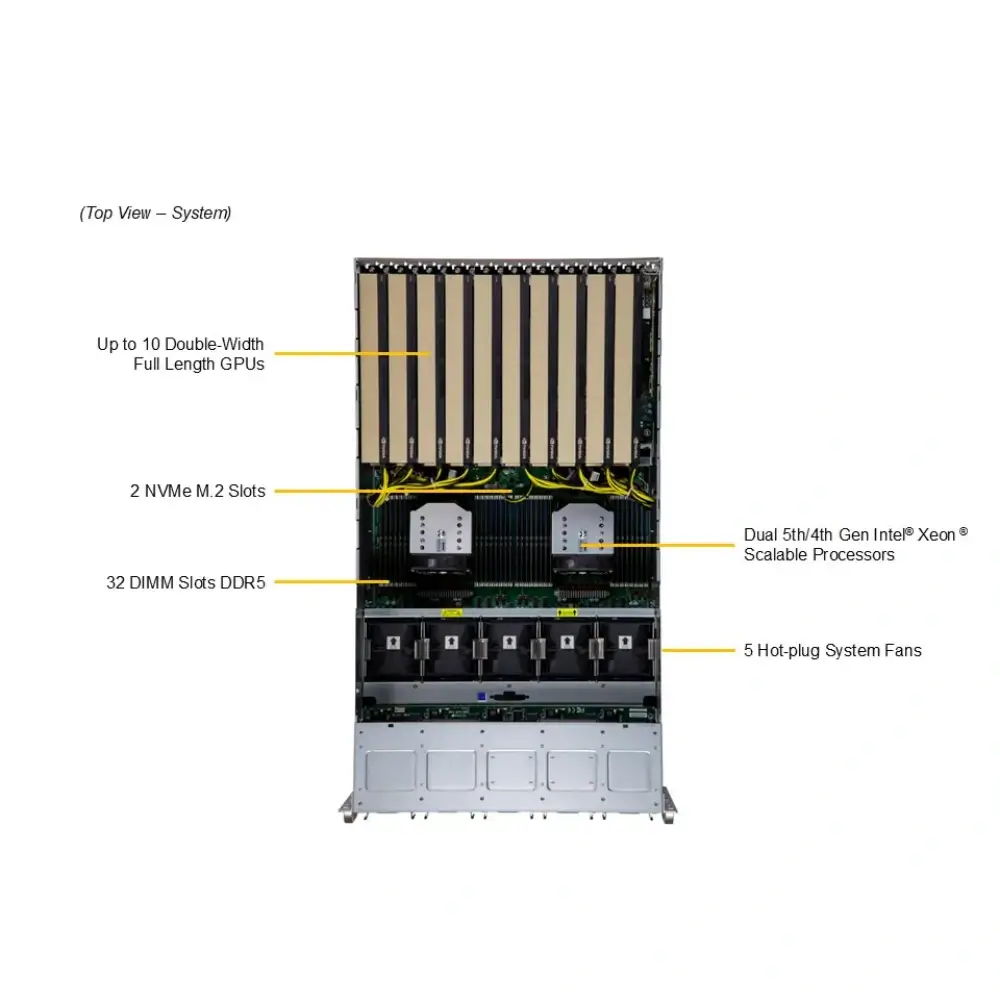

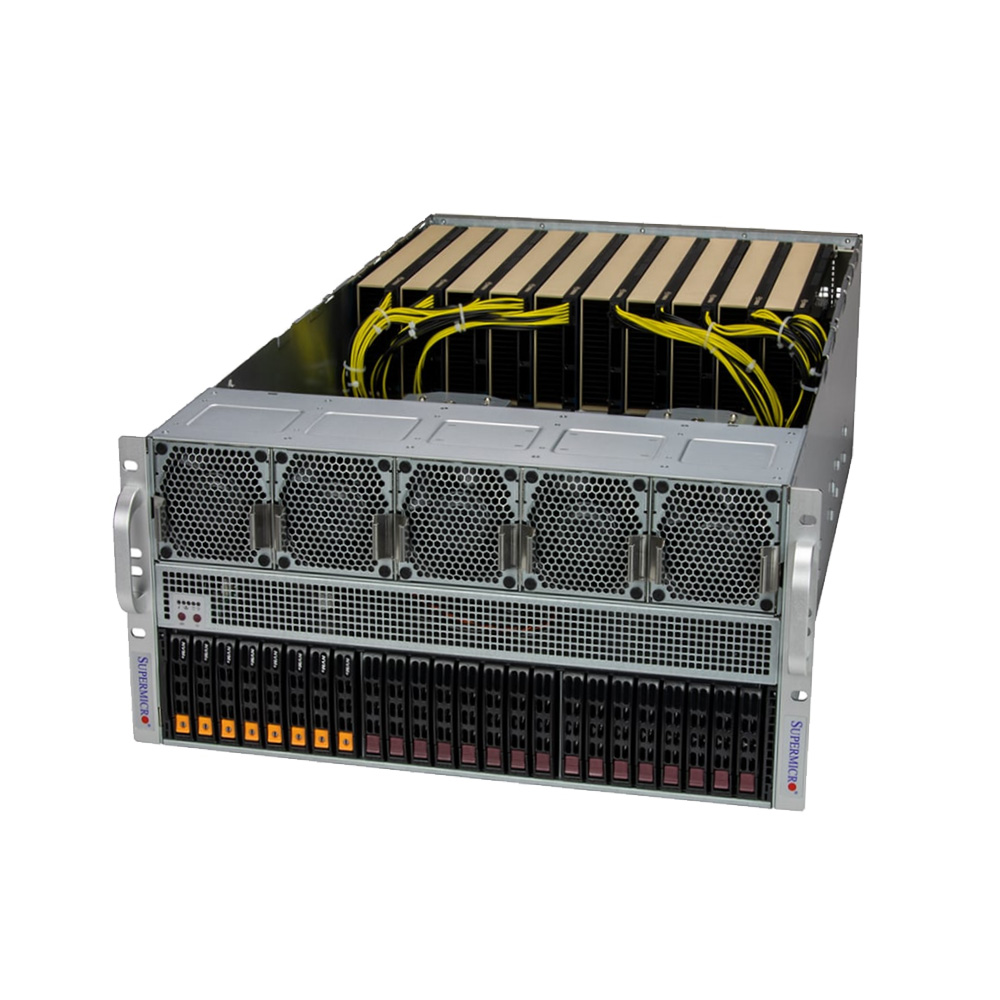

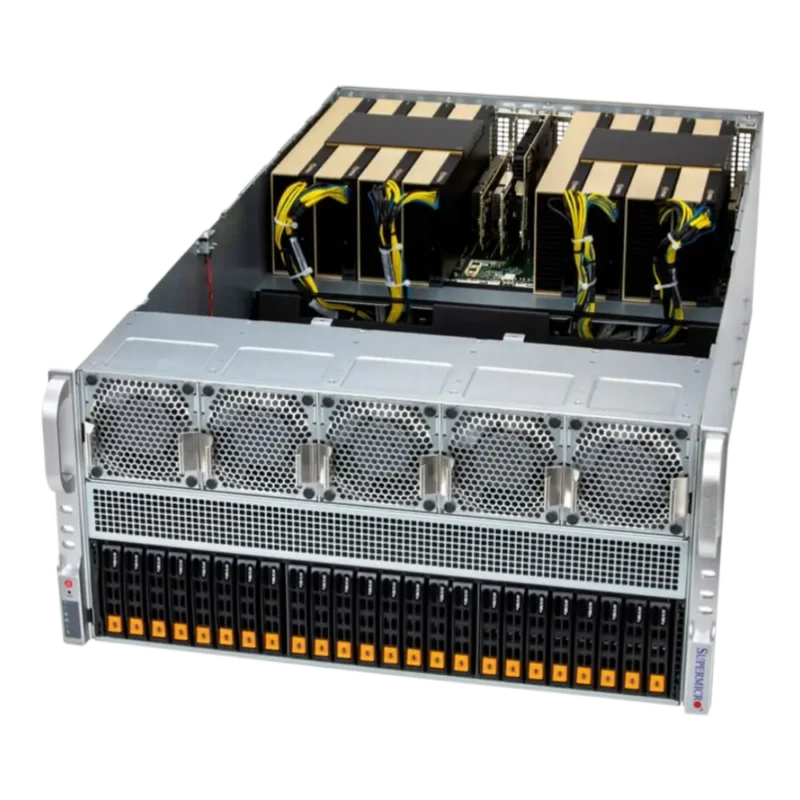

SYS-521GE-TNRT（5U GPU SuperServer）

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
AIOM/OCP 3.0 Support

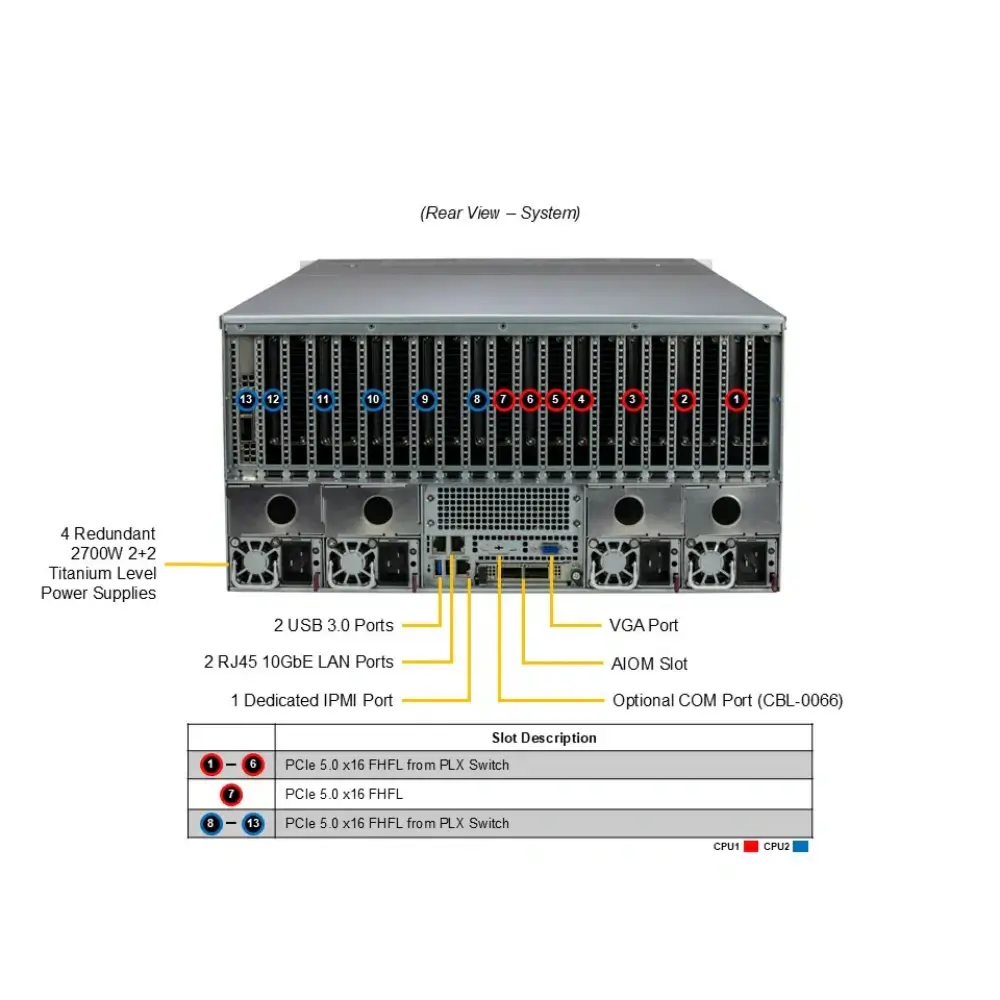

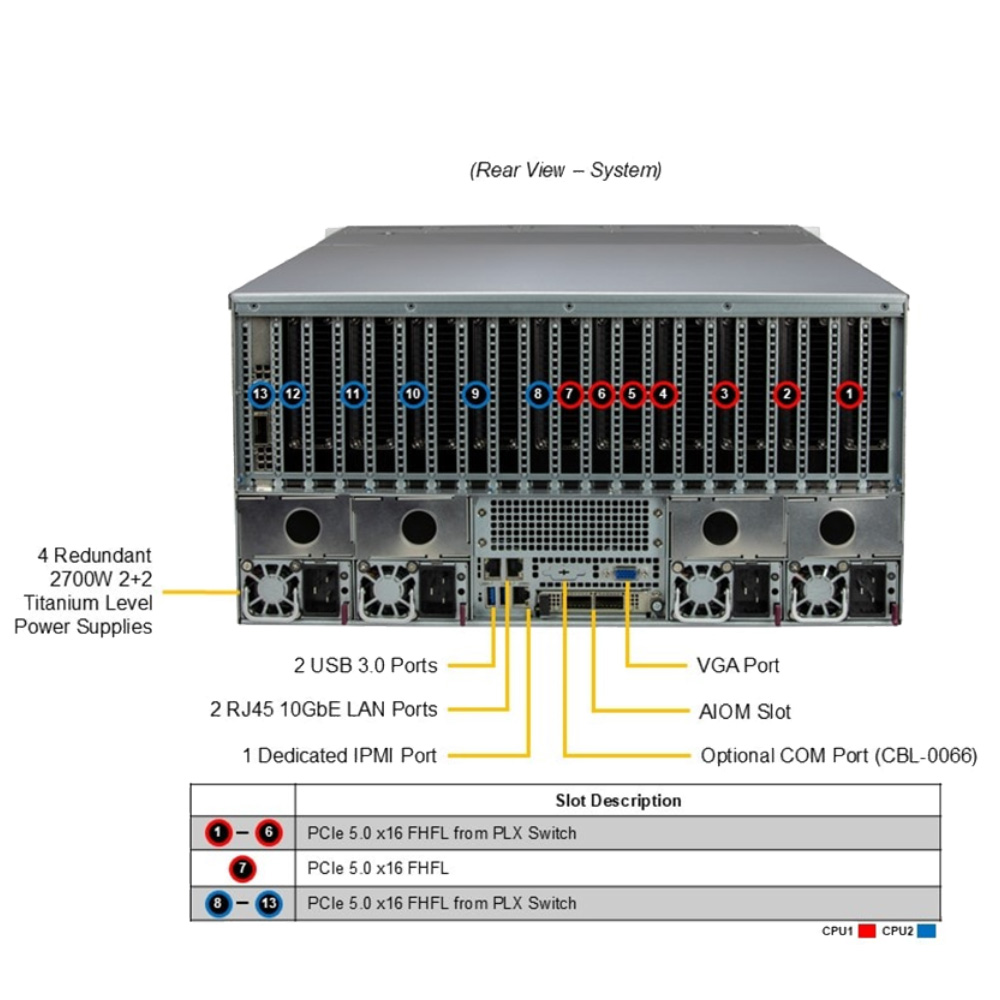

13 PCIe Gen 5.0 X16 FHFL Slots

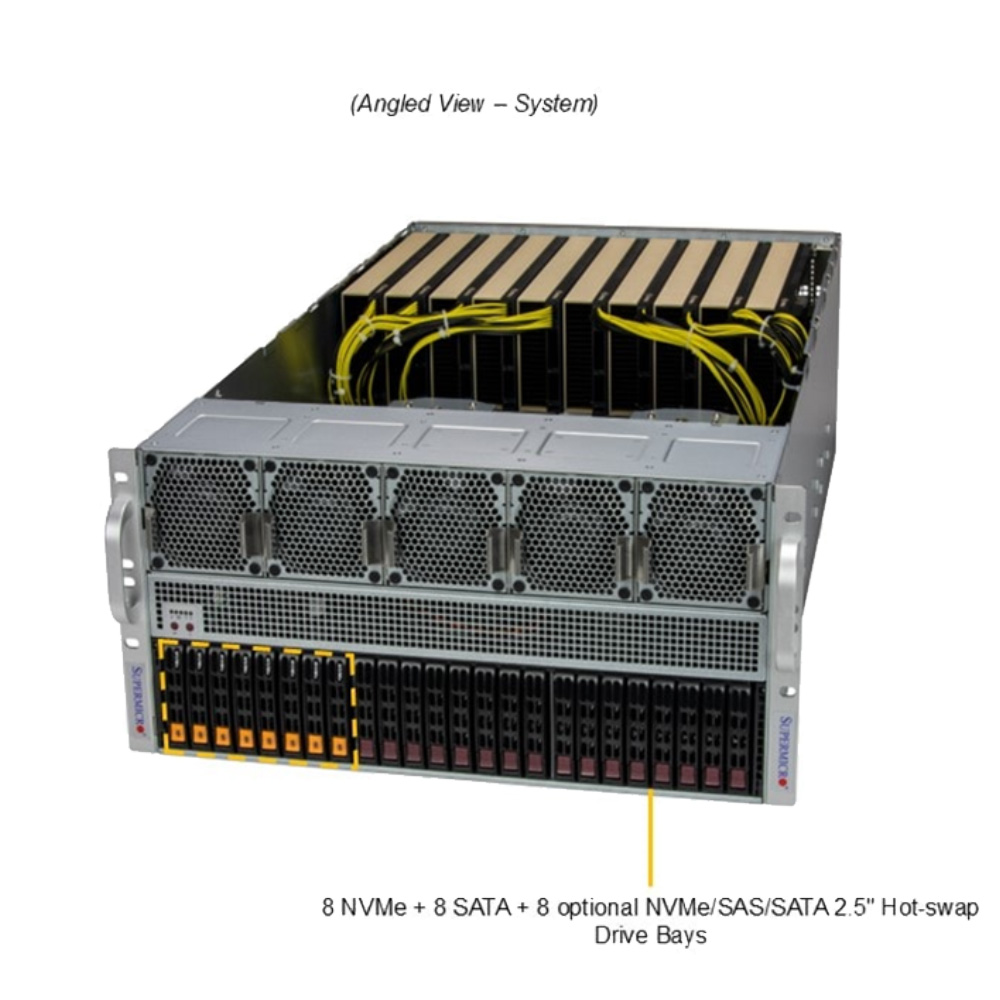

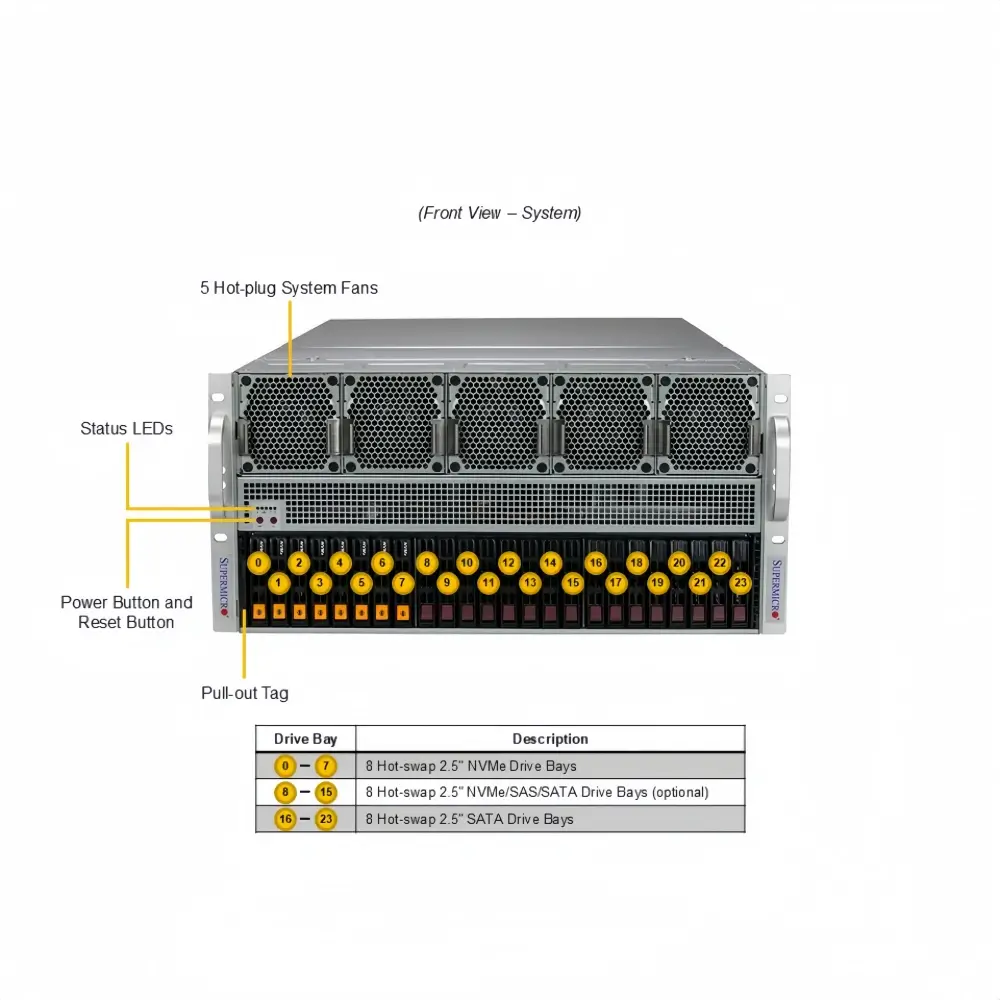

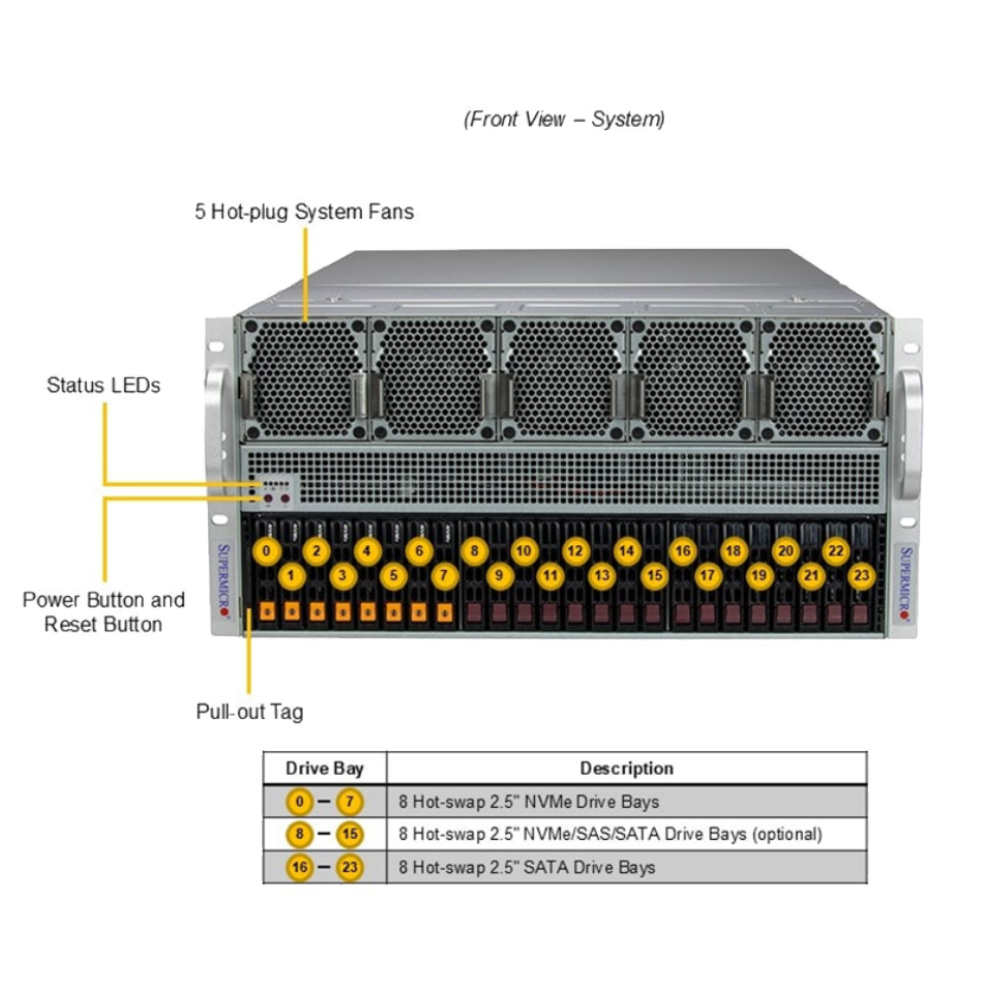

8x HOT SWAP 2.5” SATA/SAS (AOC required)
8x 2.5″ Hot-swap SATA drive bays

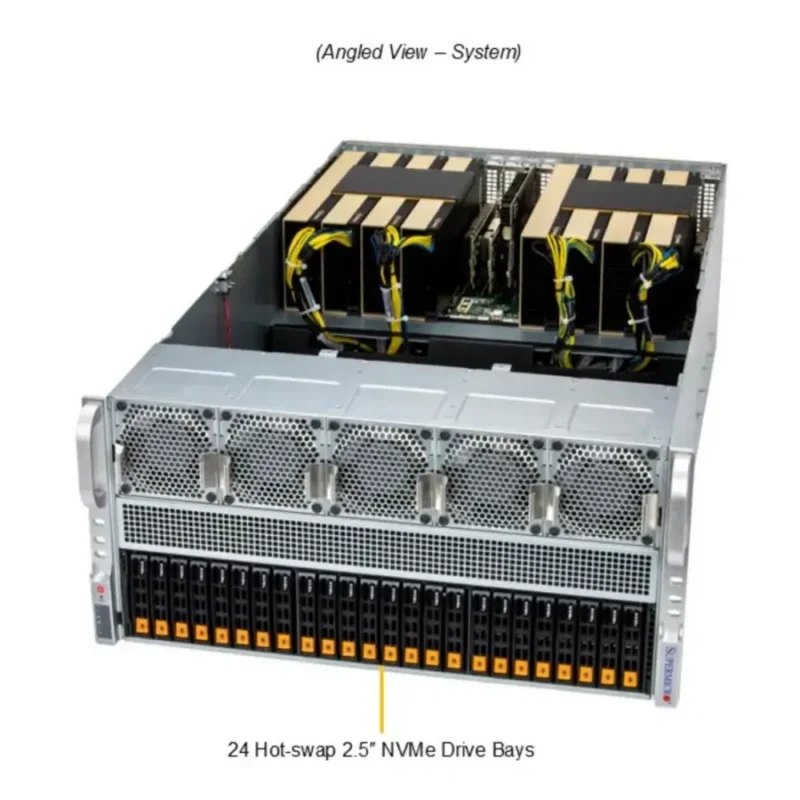

8×2.5″ Hot-swap NVMe drive bays
10 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

Category: Supermicro Server

Product SKUs	SuperServer SYS-521GE-TNRT

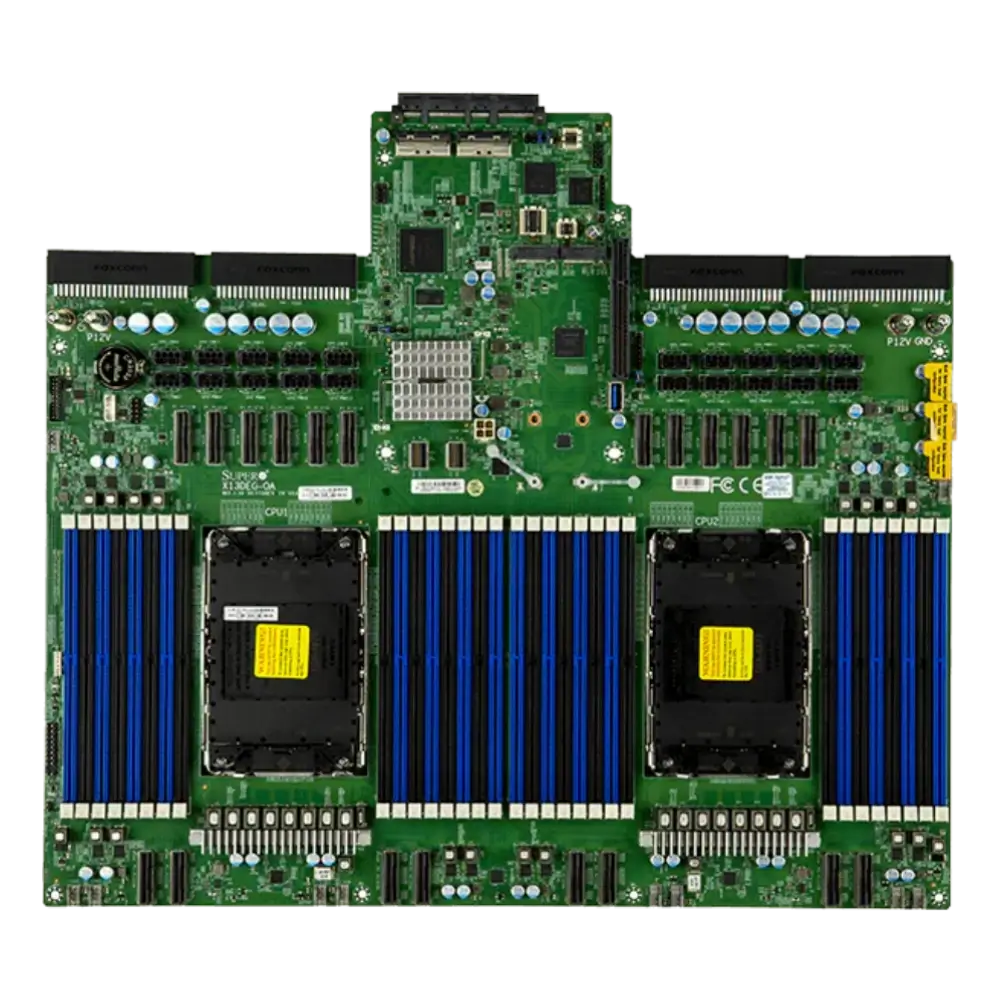

Motherboard	超级 X13DEG-OA
CPU	Dual Socket E (LGA-4677)
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled)
Max GPU Count	Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, RTX 6000 Ada Generation
CPU-GPU Interconnect	PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)
Form Factor	5U Rackmount
Model	CSE-528GTS-R5K40P
Height	8.75" (222.5 mm)
Width	17.2" (438 mm)
Depth	31" (786.1 mm)
Package	17.32" (H) x 28.34" (W) x 42.51" (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body
Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
