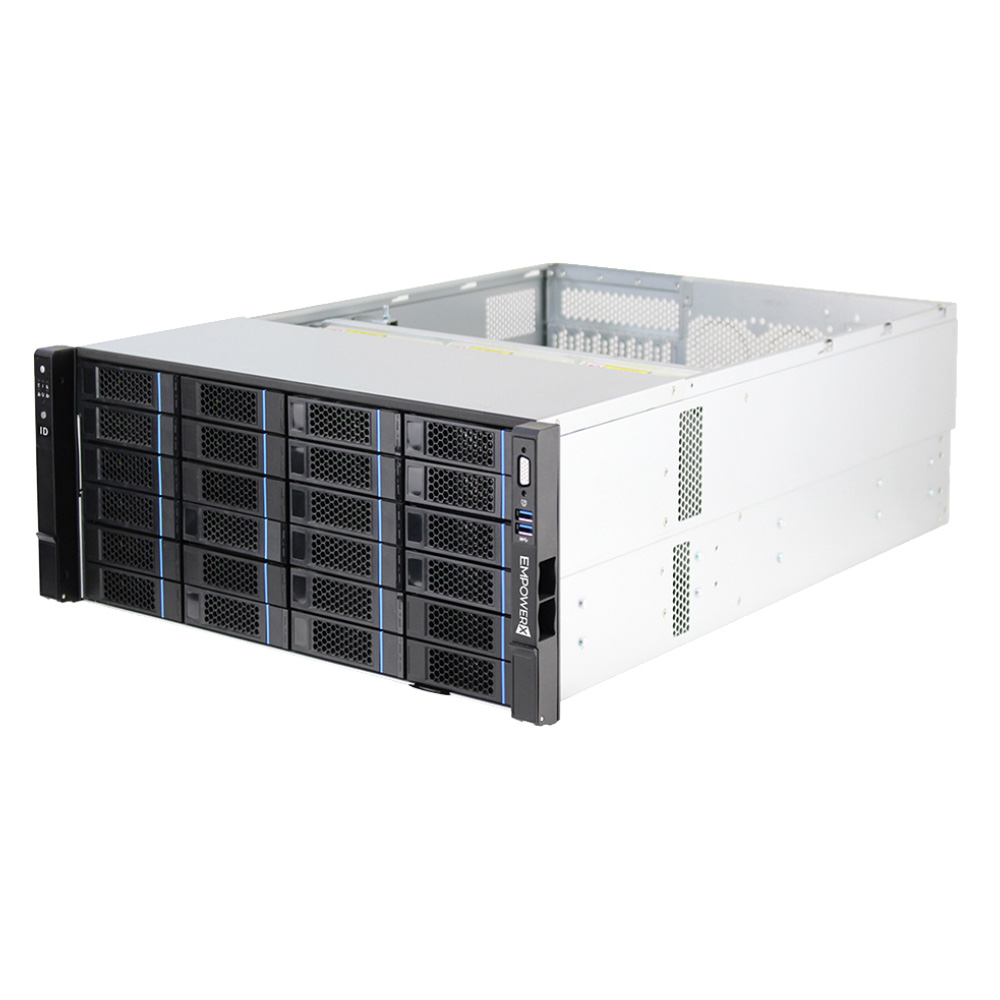

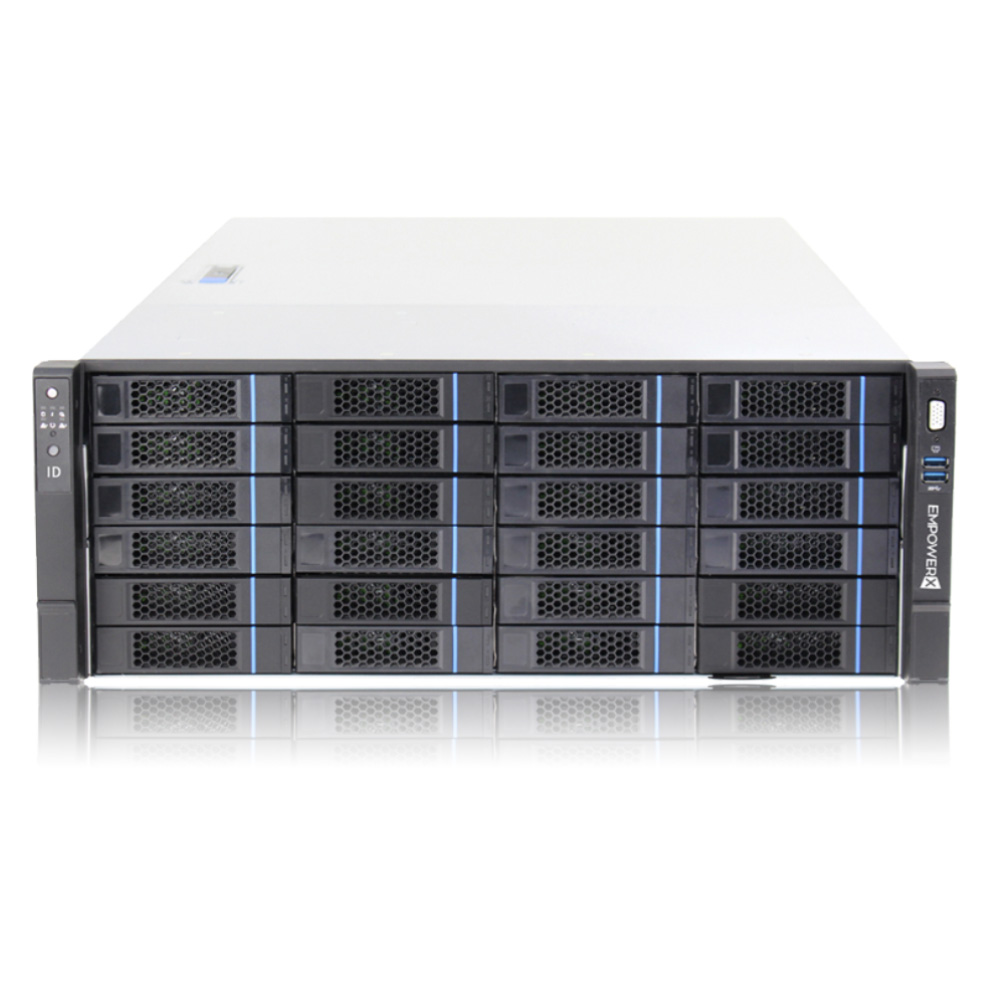

FS4224-G4（4U Intel Server）

Supports two 4th/5th generation Intel® Xeon® Scalable processors, up to 64C/128T per processor;
16 memory slots, supporting up to 4TB 5600/4800/4400MHz ECC DDR5 RDIMM/LRDIMM;
4 PCIe 5.0 x16 slots, 2 PCIe 5.0 x8 slots;
2 PCIe 4.0 x8 NVMe interfaces (8654 8i), 2 PCIe 4.0 x2 M.2 slots;
24 3.5-inch hot-swappable drive bays (compatible with 2.5-inch drives), with optional 2 rear 2.5-inch SAS/SATA/NVMe drive bays;
2 1GbE BaseT network ports, Broadcom BCM5720 controller
Configured with 3 12038B… High-speed system fan with intelligent speed control; Supports 1+1 redundant power supply (800/1000/1600W) and load balancing;

Category: Storage Server

Hardware Specifications
Reviews (0)

Hardware Specifications

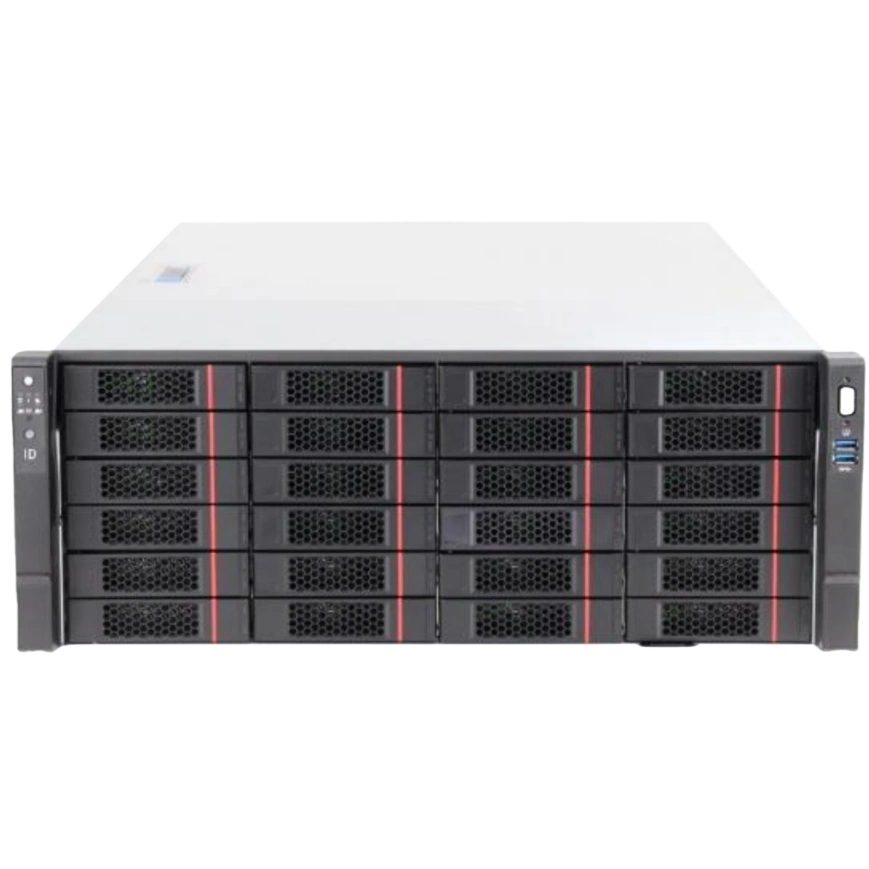

ES4024-G5 4U 24 Disk Storage Server

Processor	Supports 2*4th or 5th generation Intel® Xeon® Scalable processors, with a maximum TDP support of 350W、Up to 64C/128T；
Chipset	Intel® C741 chipset;
Memory	16 DDR4 DIMM memory slots, supporting up to 4TB of ECC DDR5 RDIMM/LRDIMM;Supported frequencies: 5600/4800/4400MHz;
BMC	Integrated ASPEED BMC management chip;
Network	Integrated dual Gigabit Ethernet ports RJ45, BCM5720 controller; Supports expansion with standard PCIe 1G/10G/25G/100G/200G network cards;
Hard Drive Bay	24 hot-swappable 3.5-inch drive bays (compatible with 2.5-inch drives), plus 2 rear 2.5-inch drive bays, with optional NVMe drive bays; 2 M.2 interfaces, PCIe 4.0 x2 speed, supporting 2280/22110 form factor.
Hard Drive Backplate	Optional 12Gb Expander backplane or 12Gb direct-connect backplane, supports SGPIO and fan PWM intelligent speed control, optional hard drive time-sharing boot, optional 8 NVMe drives;
RAID expansion	Integrated SATA controller supports SATA RAID 0, 1, 5, 10 (subject to actual system configuration); SAS RAID card can be flexibly configured, supporting RAID 0/1/5/6/50/60, and supports cache supercapacitor protection;
PCI-Express	4 PCIe 5.0 x16 slots; 2 PCIe 5.0 x8 slots;
Supported operating systems	Kylin OS, Red Hat Enterprise Linux, SLES, CentOS, QEMU-Xen, vSphere, QEMU-KVM, Ubuntu, VMware ESXi, Microsoft Windows;
Management functions	It features a dedicated out-of-band management network port, supports the Intelligent Platform Management Interface (IPMI 2.0), and supports virtual media on the local area network and online KVM;

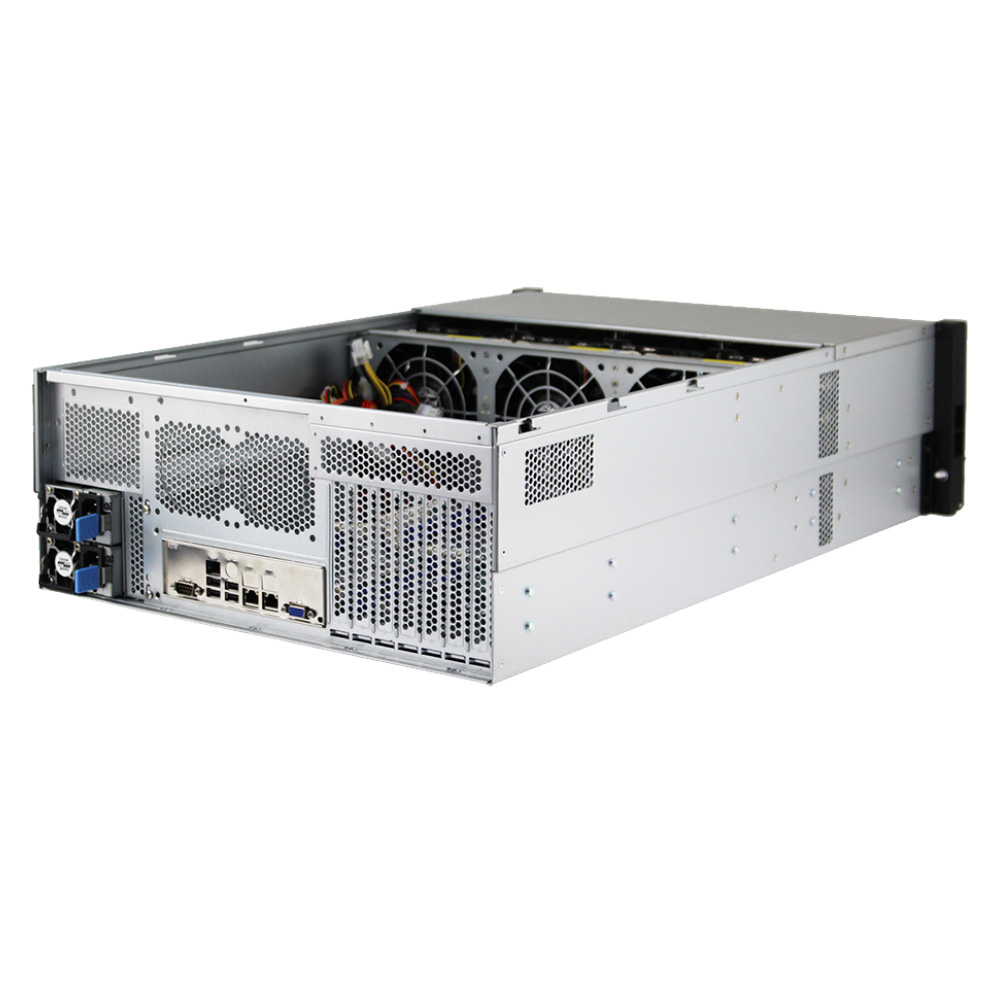

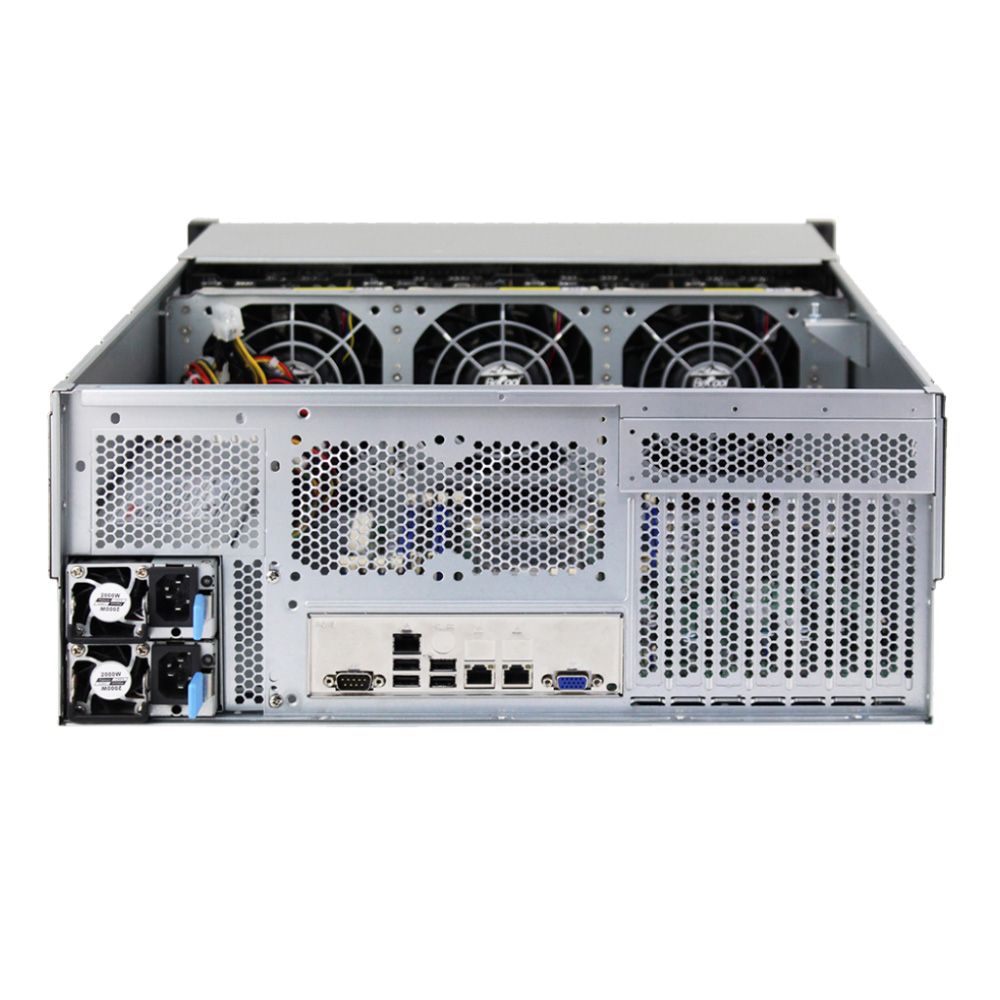

IO ports	1 IPMI RJ45 management port; 2 1GbE RJ45 ports; 1 VGA display interface; 4 USB 3.0 ports; 1 COM port;
Cooling	Standard configuration includes 3 12038B intelligent control fans, supporting hot-swapping;
Power Supply	Optional 800/1000/1600W 1+1 redundant power supply;
Chassis	4U rackmount server chassis;
Chassis imensions	437mm x 176mm x 650mm (width x height x depth);
Weight	Maximum weight 48 kg (excluding guide rails);
Temperature Environment	Operating Temperature: 10°C~35°C;Non-operating Temperature: -40°C～70°C;
Humidity Environment	Operating Relative Humidity: 8%~90% (non-condensing); Non-operating Relative Humidity: 5%-95% (non-condensing);
