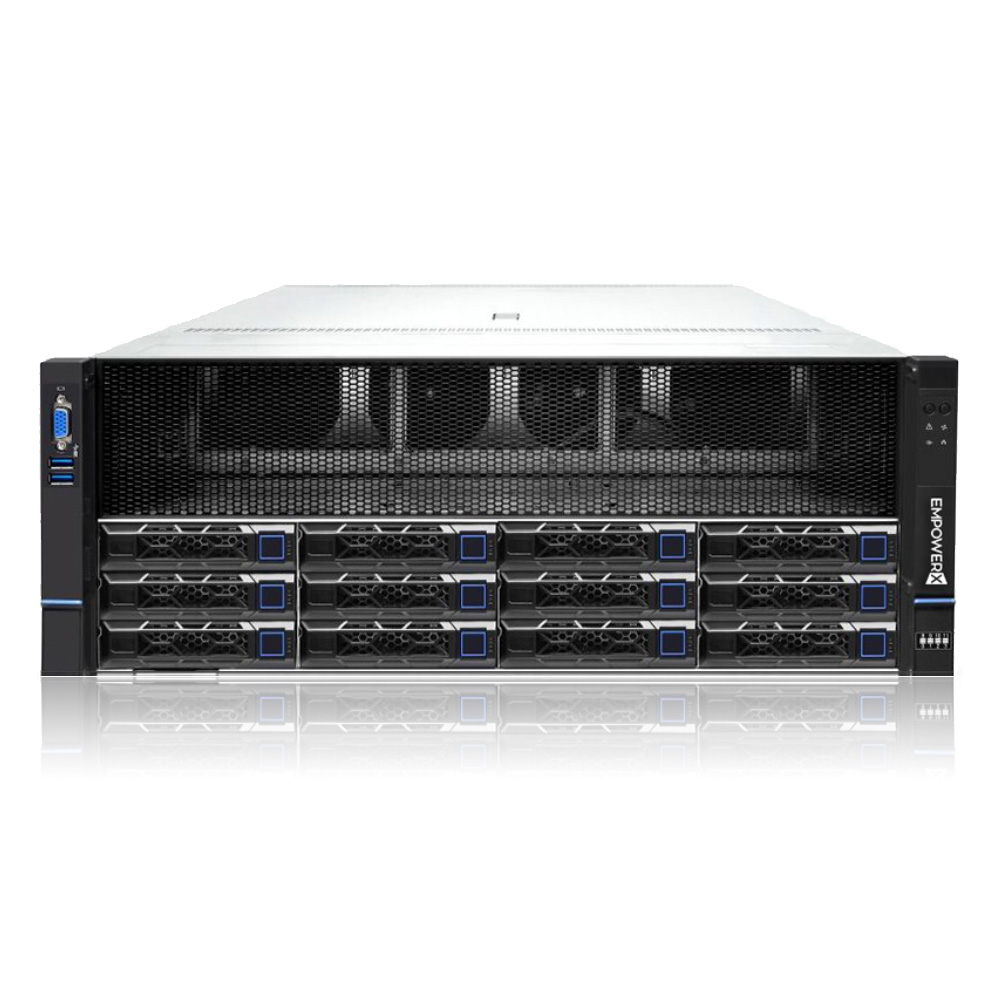

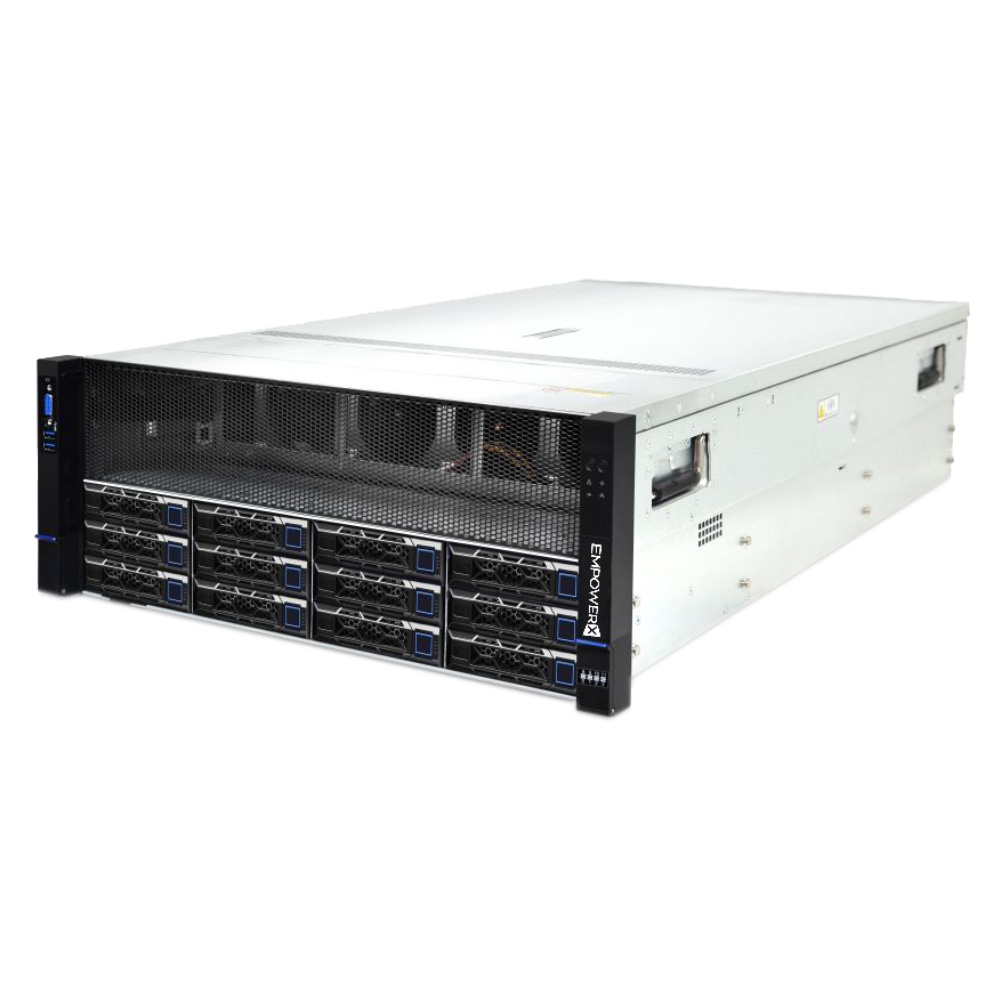

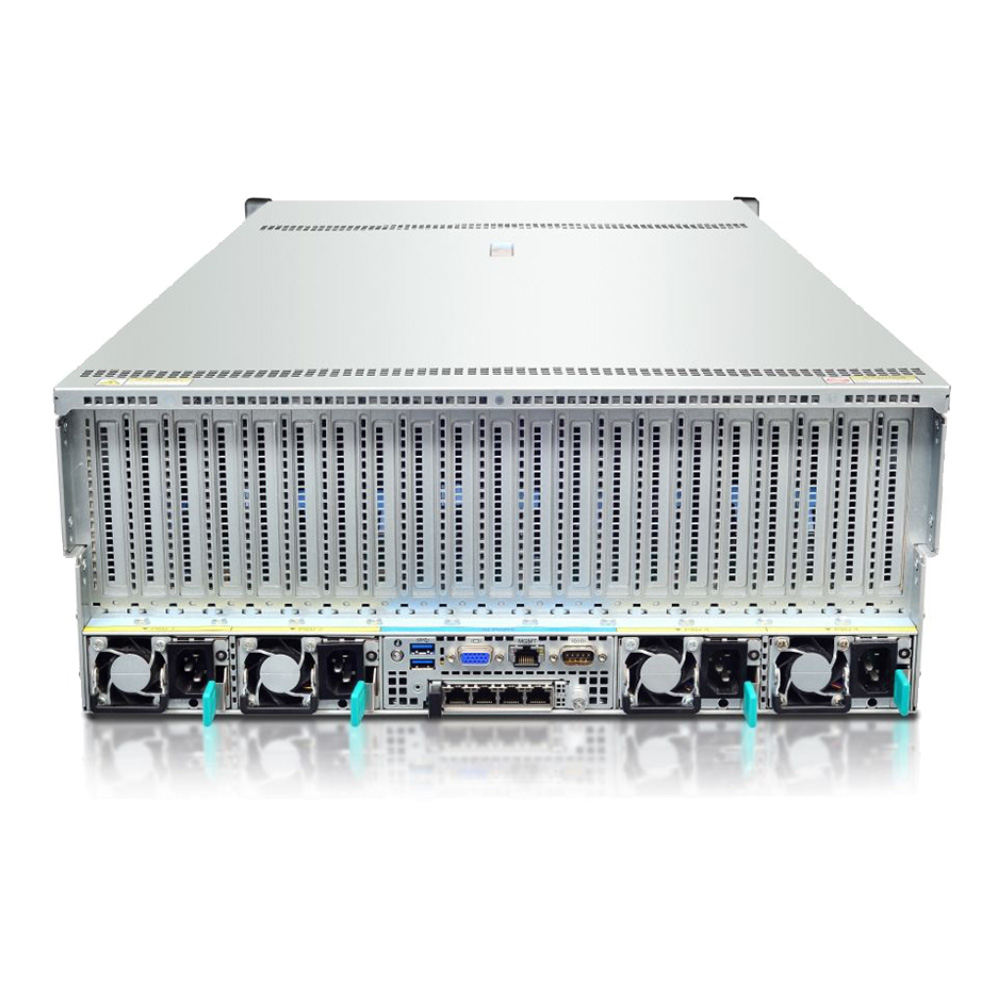

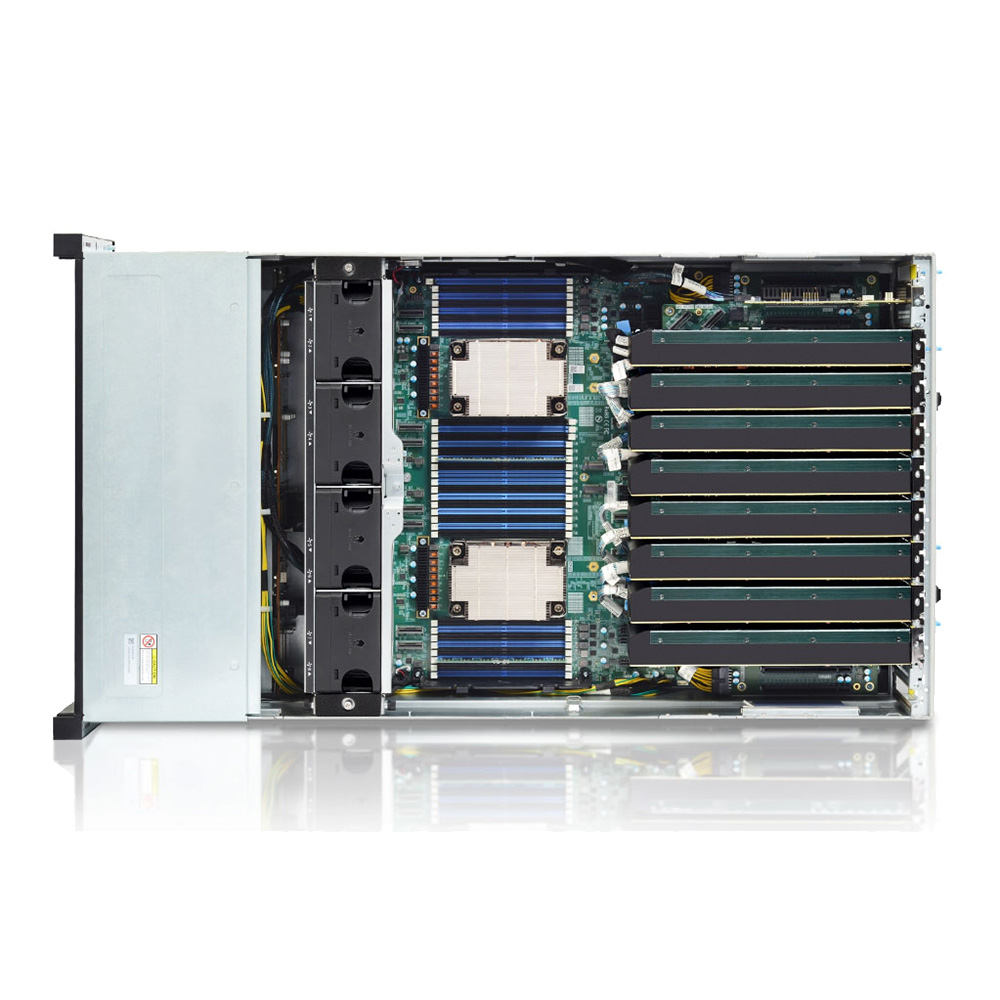

FG4812T-G4（4U 8-GPU Server）

Processor

Supports 2*4th or 5th generation Intel® Xeon® Scalable processors, with a maximum TDP support of 350W、Up to 64C/128T；

Chipset

Intel® C741；

Memory

Supports 32 x DDR5 DIMMs, up to 5600/4400MHz；

BMC

Integrated dedicated BMC management controller with IPMI support；

Supported GPU

Supports up to eight double-width NVIDIA Tesla, Quadro, or RTX GPUs；

Network

1 1Gb RJ45 dedicated management network port；

Supports expansion with standard PCIe network adapters at 1GbE, 10GbE, 25GbE, 40GbE, 100GbE, and 200GbE. ；

Drive Bays Configuration

12 × 3.5-inch hot-swappable drive bays (compatible with 2.5-inch drives), 2 × M.2 slots, optional 2× U.2 NVMe SSDs ；

RAID Expansion Support

Integrated 6Gb/s onboard SATA, optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card；

PCI-Express

9 PCIe 5.0 x16 FHFL slots+2 PCIe 5.0 x8 FHFL slots；

OS Compatibility

kylinos、Red Hat Enterprise Linux 、SLES、CentOS、QEMU-Xen、vSphere、QEMU-KVM、Ubuntu、VMWare ESXi、Microsoft Windows；

BMC

Integrated BMC management chip, supporting functions such as IPMI2.0, Redfish, SOL, KVM, virtual media, etc；

I/O Ports

1个 IPMI RJ45 management port；

2个VGA；

4个USB3.0 prot；

FAN

8 x 8056 high-speed fans, hot swappable, N+1 redundant；

Power Supply

2000W/2400W/2700W/3000W high-efficiency platinum power supply；

Chassis

4/5U Rackmount；

Security

Supports TPM2.0 module and chassis intrusion alarm；

Dimensions

448mm x 175mmx 822mm(WxHxD)；

Weight

Maximum weight 45 kg；

Operating Environment

Operating temperature: 5ºC - 35ºC (without direct sunlight);

Storage temperature: -40ºC - 70ºC；
